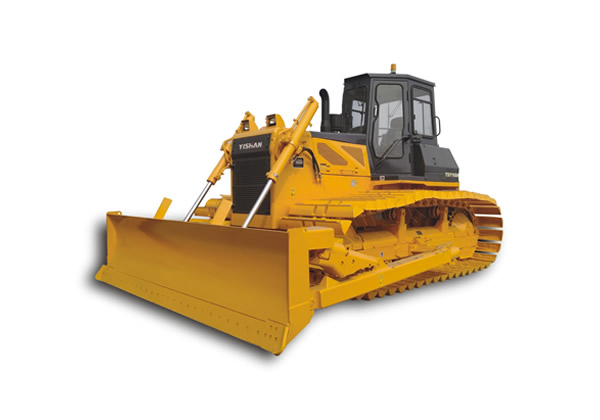

TSY160H
Crawler wetland bulldozer
The whole machine introduction:
In order to build a mountain-moving boutique and ensure technology leadership, the company has comprehensively upgraded existing products and developed the Shishanlong series of bulldozers. The series of bulldozers has six patent technologies including floating support and automatic idle speed series. The “wetland dragon” means Yishan. Wetland bulldozer wetland operations are handy – such as the dragon into the sea! The transmission system continues the high reliability of the Shisan 160 series. The appearance is specially designed from the spray coating and decals. The interior of the cab is sealed and optional with a new air booster and negative ion generator. It has low noise and dust. Function: It adopts stall protection, automatic idle speed and electronically controlled throttle control system, which has the characteristics of energy saving and environmental protection and prevents abnormal heating of hydraulic system. The side door adopts integral opening design, which is convenient for maintenance; the cylinder moves forward and the efficiency of hydraulic system is improved: the system adopts the left hand. Centralized operation. It adopts the national III stage engine and has strong power to meet environmental protection requirements.
Performance
| Model | TSY160H |
| Engine Model | WP10G178E355 |
| Power Rating[kw/r/min] | 131/1850 |
| Fuel consumption rate[g/kw·h(g/ps·h)] | ≤215 |
| Maximum torque [N·m/r/min] | 830/1150 |
| Bulldozer form | Straight tilting shovel |
| Use mass(kg) | 19500 |
| Minimum turning radius(m) | 4.3 |
| Climbing capacity(degree) | 30° |
| Forward speed(km/h) | 3.8/6.6/10.6 |
| Backward speed (km/h) | 4.9/8.5/13.6 |
| Track center distance(mm) | 2170 |
| Track ground length(mm) | 3140 |
| Track plate width (standard) (mm) | 1070 |
| Grounding pressure (kpa) | 29 |
| Minimum ground clearance (to lower cowling) (mm) | 510 |
| Overall machine dimensions L×W×H (mm) | 5779×4150×3079 |
| Shovel shape size L×W(mm) | 4150×970 |
| Cutting angle of bulldozer blade (゜) | 55 |
| Max. lifting height of shovel(mm)(from the ground) | 1026 |
| Maximum cutting depth of shovel blade(mm)(from the ground) | 469 |
| Maximum tilt of shovel blade (mm) (from the ground) | 745 |
| Track plate (number of one side) (section) | 44 |
| System pressure (Mpa) | 13.7 |
